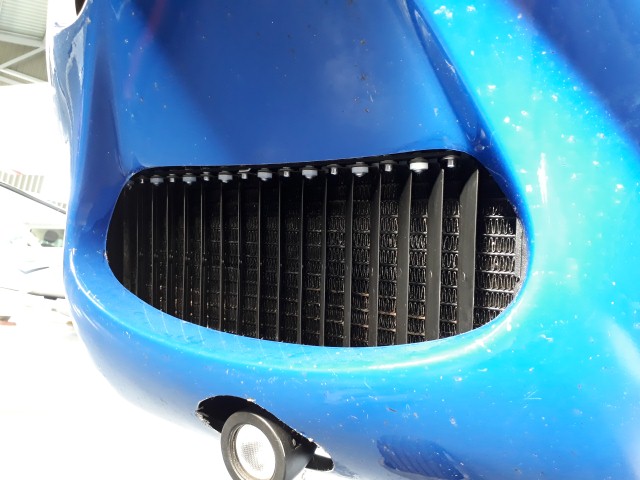

Shutters for all size oil and coolant Rotax 912/914/915/916 radiators
Size of the standard ROTAX 912/914 oil coolers.
1. 216 x 82 x 40 mm - radiator for Rotax 912UL (three holes on the side)
2. 216 x 96 x 40 mm - radiator for Rotax 912ULS, S2, S3 (four holes on the side)
3. 216 x 131 x 40 mm - radiator for Rotax 914UL (five holes on the side)
For these three radiators, the distance between the centers of the fittings is 180 mm
4. 216 x 131 x 53 mm - radiator for Rotax 912 iS, 914 UL (five holes on the side)
For this radiator, the distance between the centers of the fittings is 173 mm. Such a radiator, although rare, is found on some aircraft.
Shutters for four types of standard water radiators ROTAX 912/914/915
Radiators for water - p / n: 997083, p / n: 997084, p / n: 995698, and p / n: 997086 - Parts catalog ROTAX912 / 914 / 915.
Eimuri, Latvia
