NEW AVIATION CONTROL ATTACHMENTS

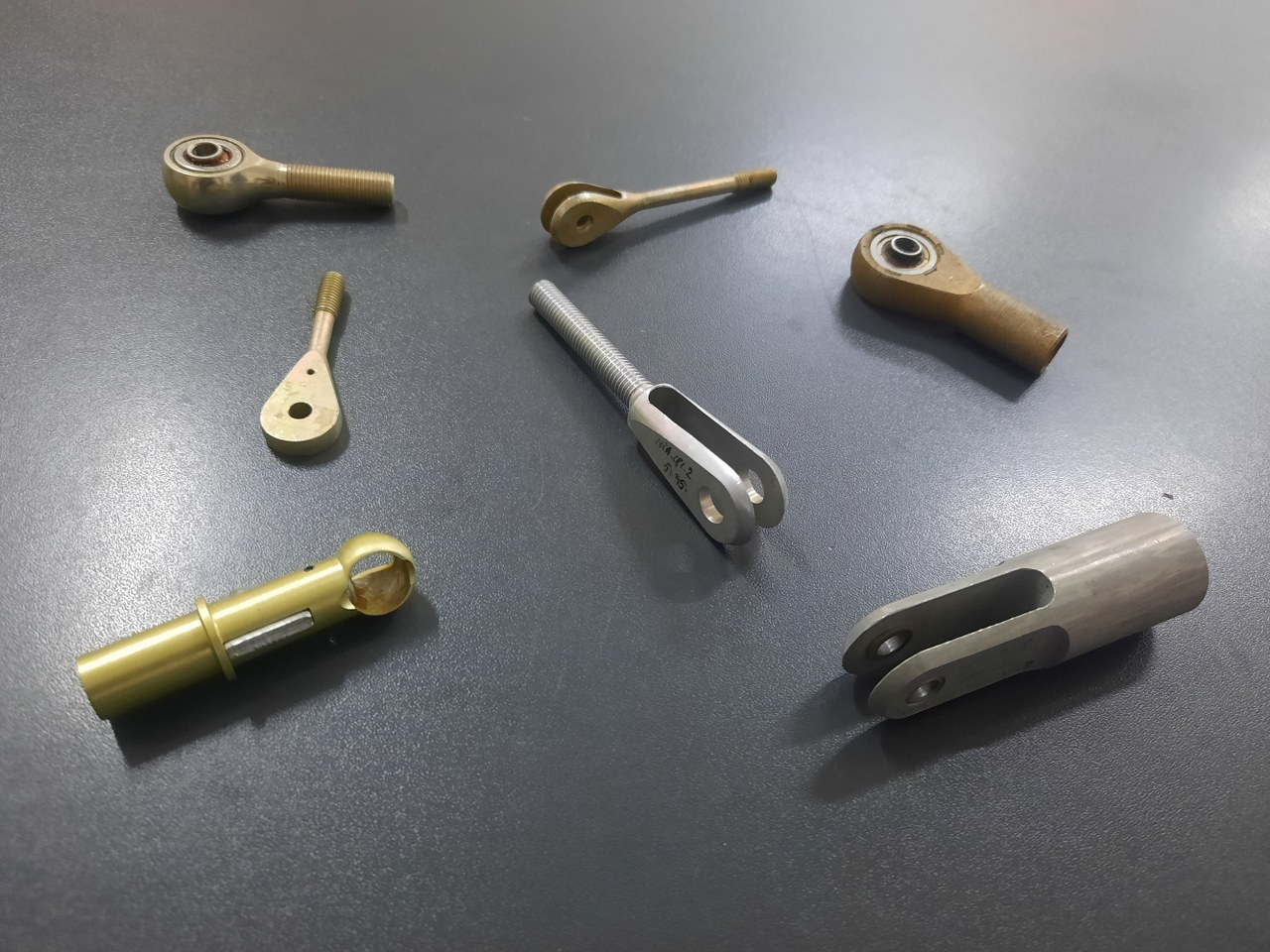

From a new old stock I am selling several models of control attachments according to the overall photo. For more aviation parts see my all adverts page.

Summary description for each one:

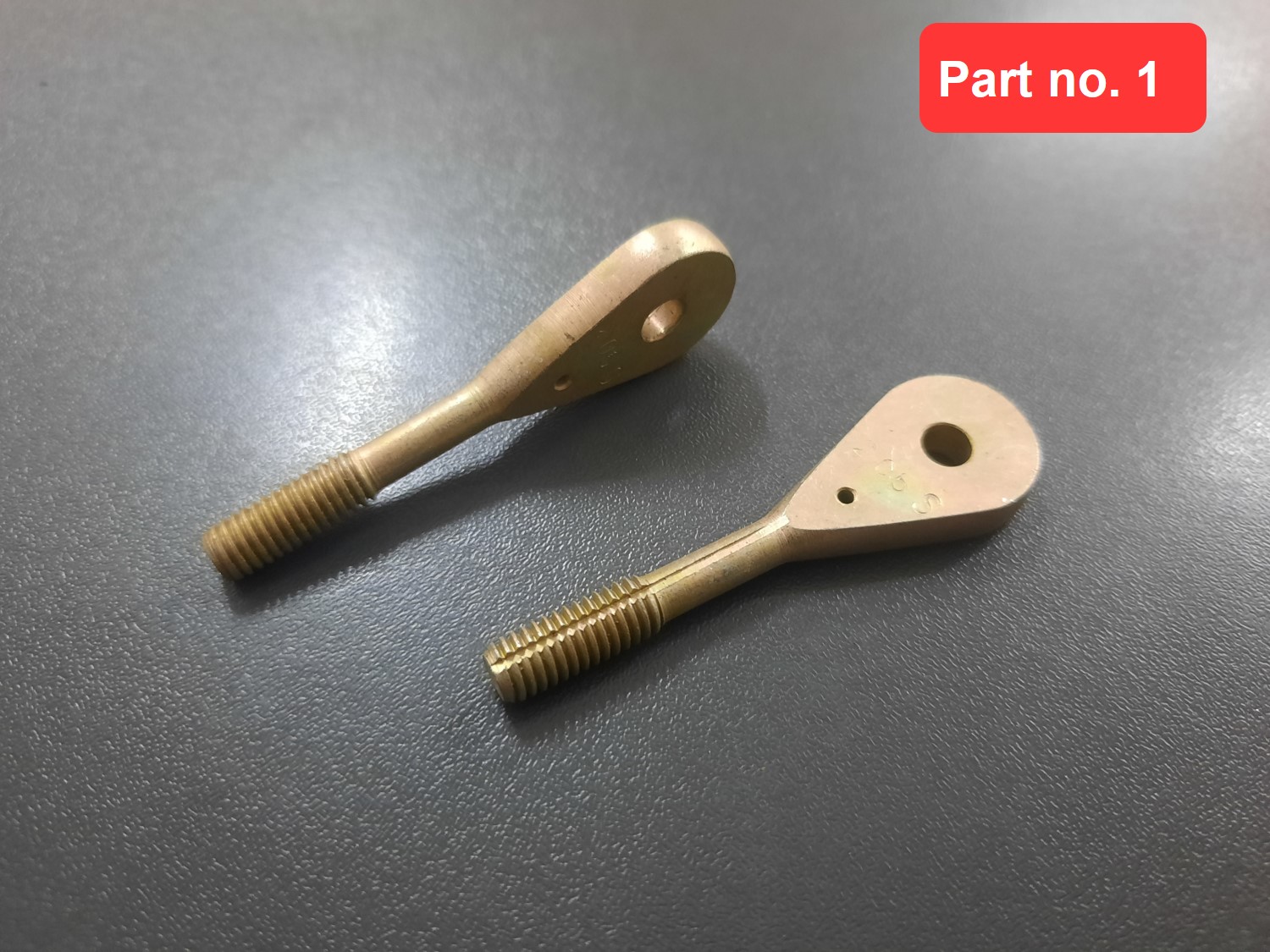

- Part no. 1:
• Total length: 57.5mm
• M6x1 – left hand thread
• Thread length: 15mm
• Hole diameter: 5mm
• Body thickness: 5mm

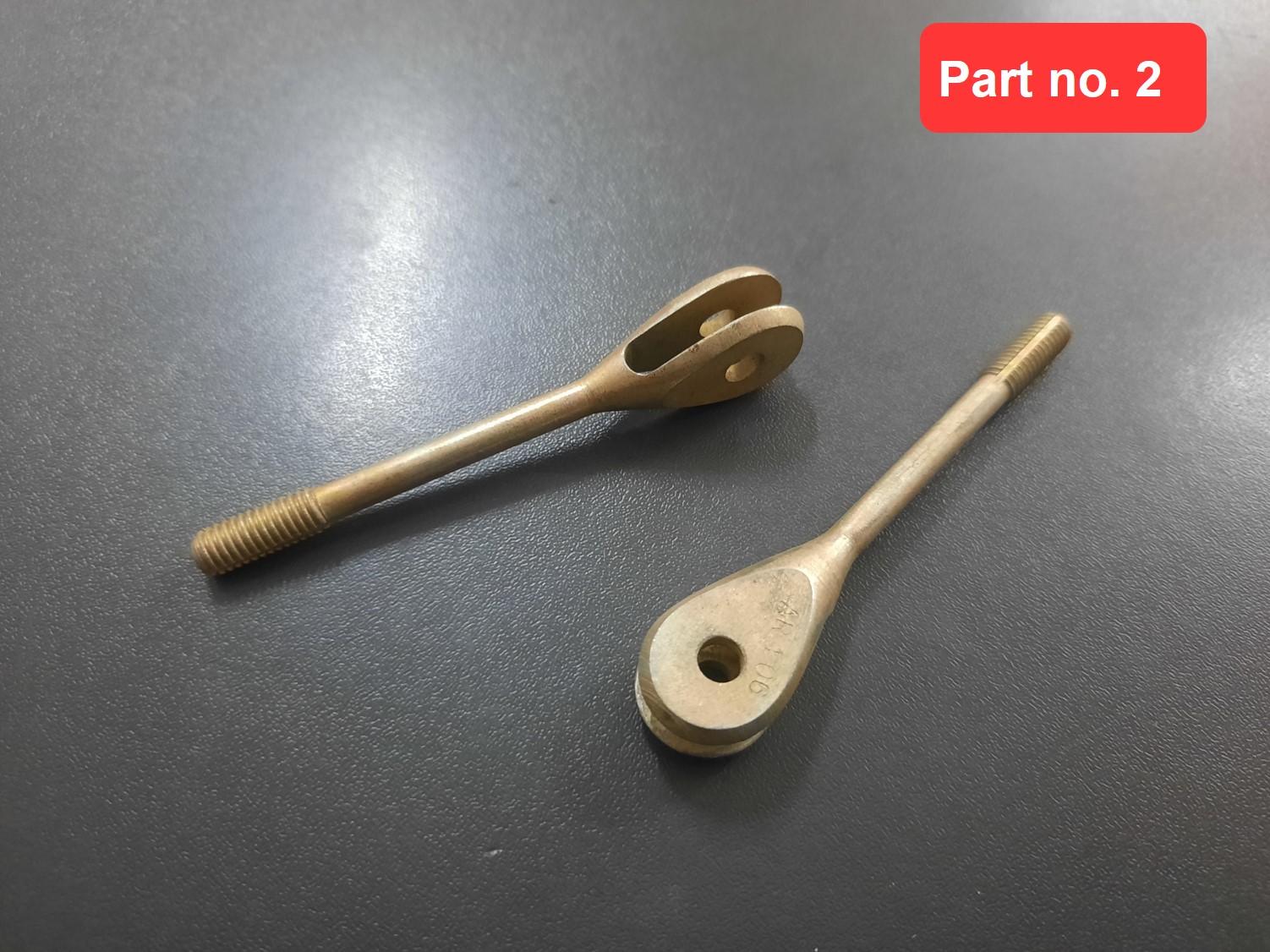

- Part no. 2:
• Total length: 79mm
• M6 thread
• Thread length: 15mm
• Hole diameter: 5mm
• Fork opening: 5mm

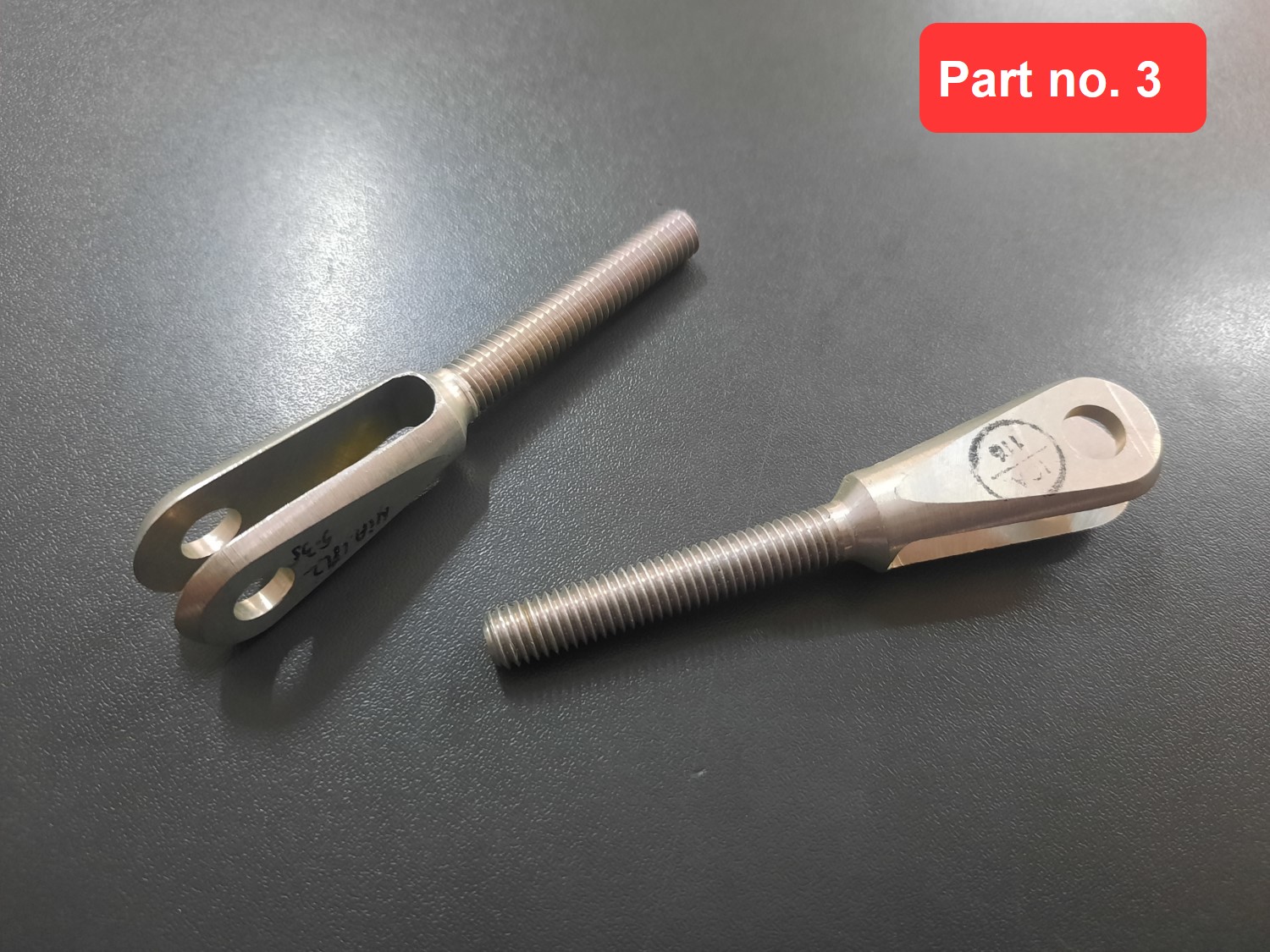

- Part no. 3:
• Total length: 92mm
• M8 thread
• Thread length: 46mm
• Hole diameter: 8mm
• Fork opening: 8.1mm

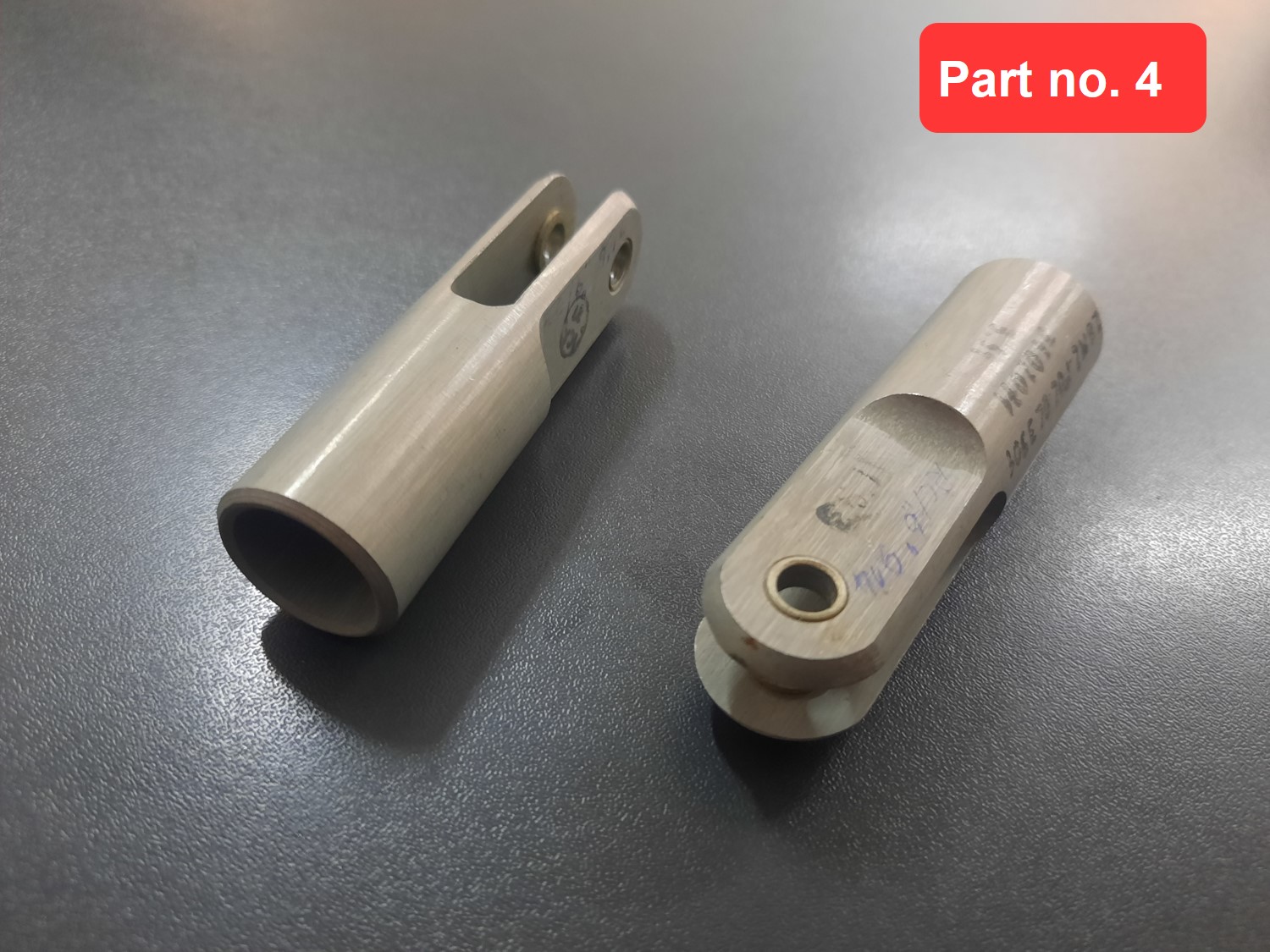

- Part no. 4:
• Total length: 76.8mm
• Fixing diameter: 17mm
• Fixing hole depth: 30mm
• Fork hole diameter: 6mm
• Fork opening: 6.8/8.8mm

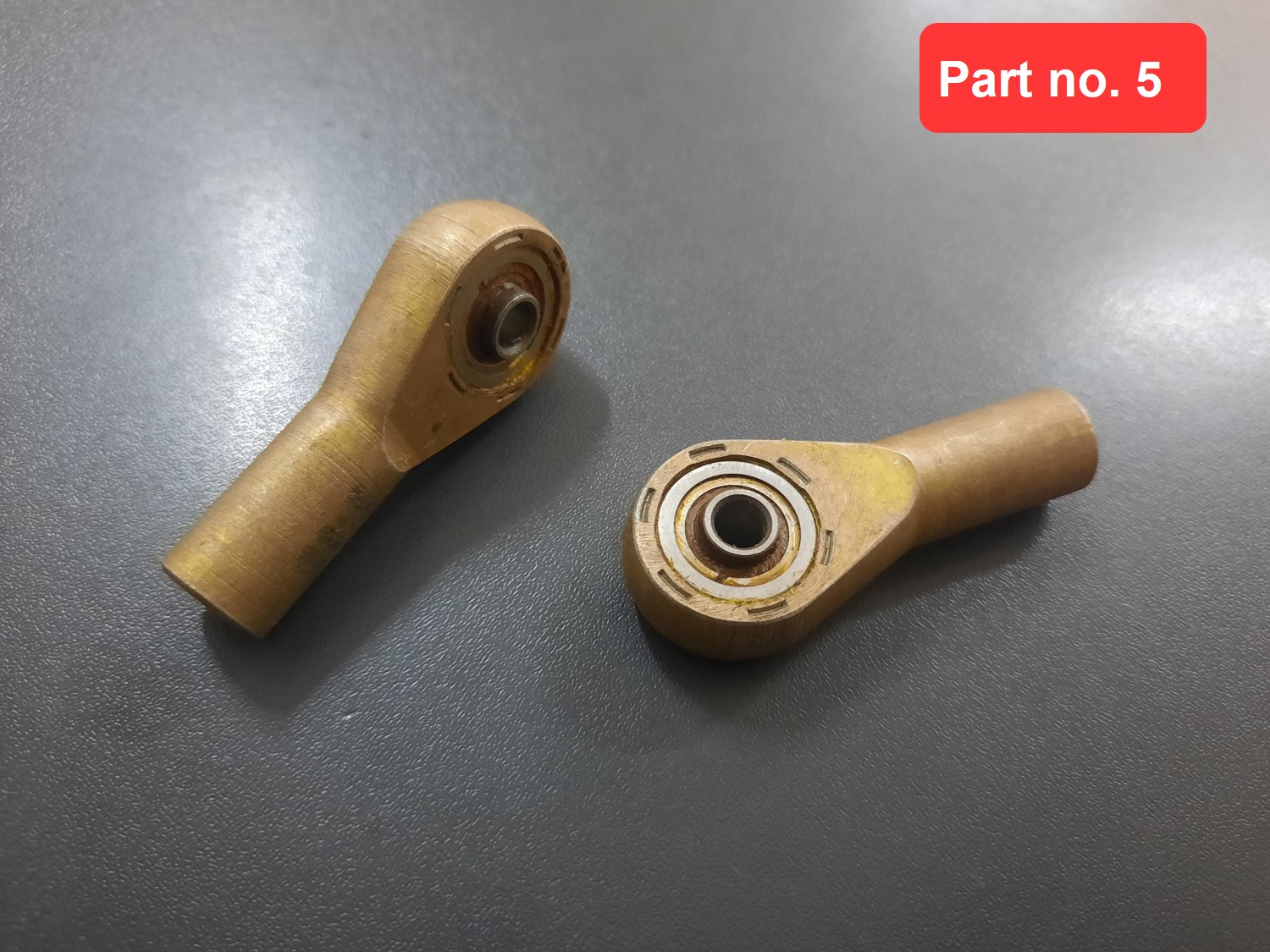

- Part no. 5:
• Total length: 60.1mm
• Fixing diameter: 10.8mm
• Fixing hole depth: 20.3mm
• Bearing KN6E
• Bearing hole diameter: 6mm

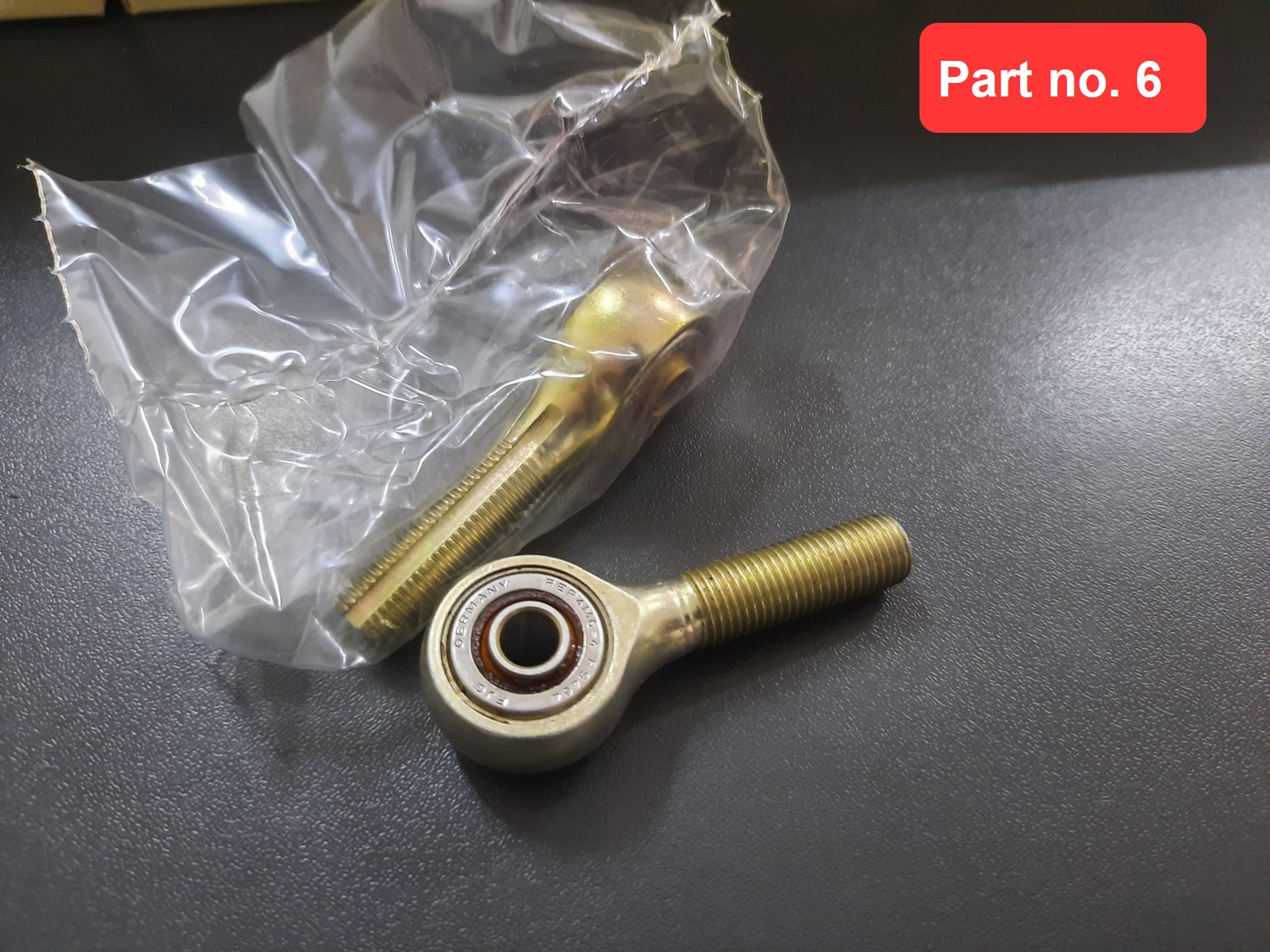

- Part no. 6:
• Total length: 59.7mm
• Thread 3/8"-24
• Bearing FJG REP4M6
• Bearing hole diameter  1/4“
• Ball width: 15mm
• Body width: 11.5mm

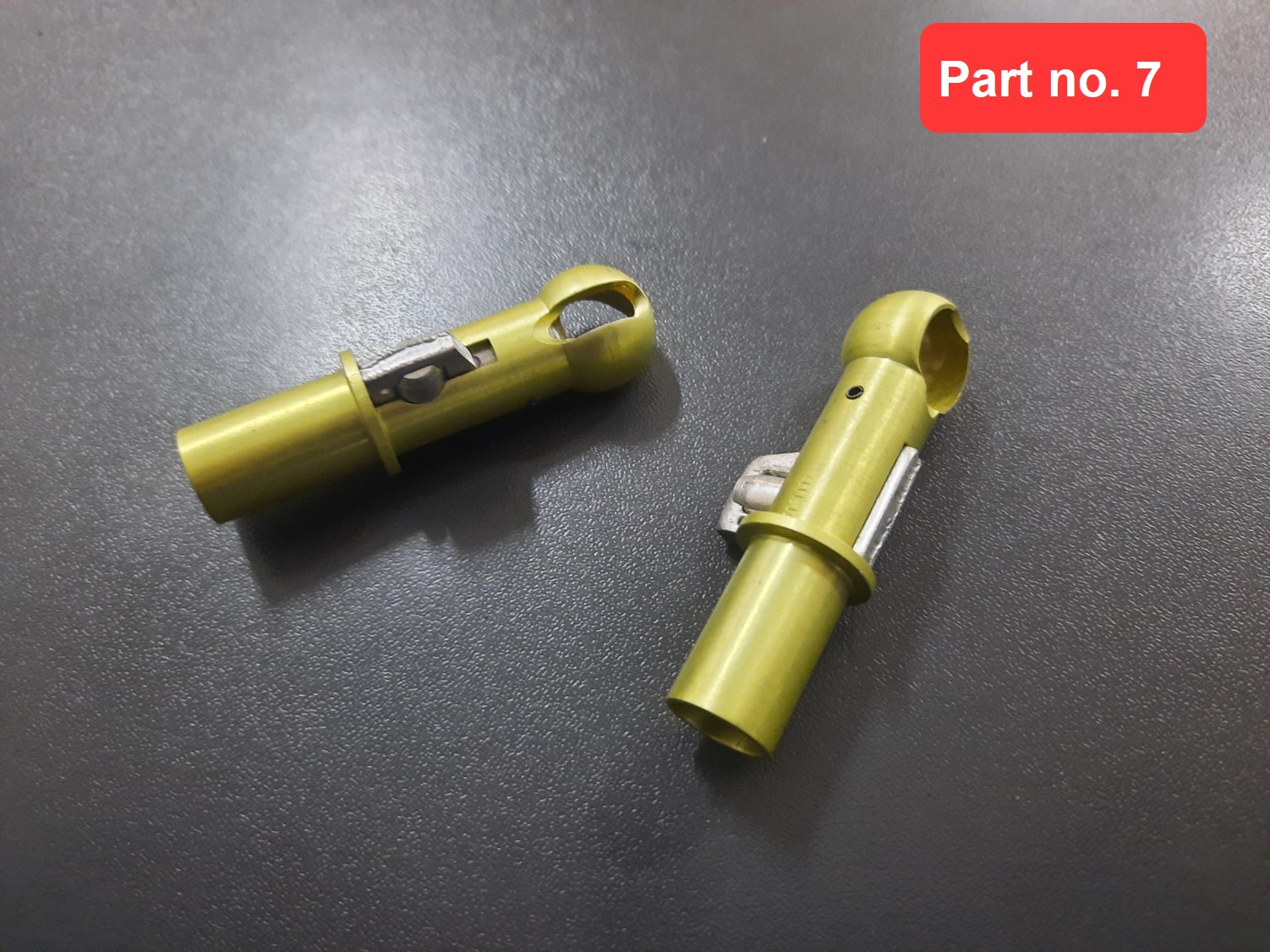

- Part no. 7:
• Total length: 58.1mm
• Fixing diameter: 12mm
• Fixing depth: 20mm
• For 12mm ball diameter
• Comes without ball!

The stock available for each model is:
- Part no. 1 (threded turnbuckle pin eye) - 116x
- Part no. 2 (threded tie rod terminal fork) - 48x
- Part no. 3 (threaded tie rod terminal fork) – 87x
- Part no. 4 (tie rod terminal fork) – 33x
- Part no. 5 (rod end bearing KN6E) – 0x
- Part no. 6 (rod end bearing FJG REP4M6 ) – 63x
- Part no. 7 (tie rod end ball joint) – 7x

The price depends on the quantity and model. For any other questions or measurements, do not hesitate to ask.
