NEW CONTROL TUBES COMPLETE

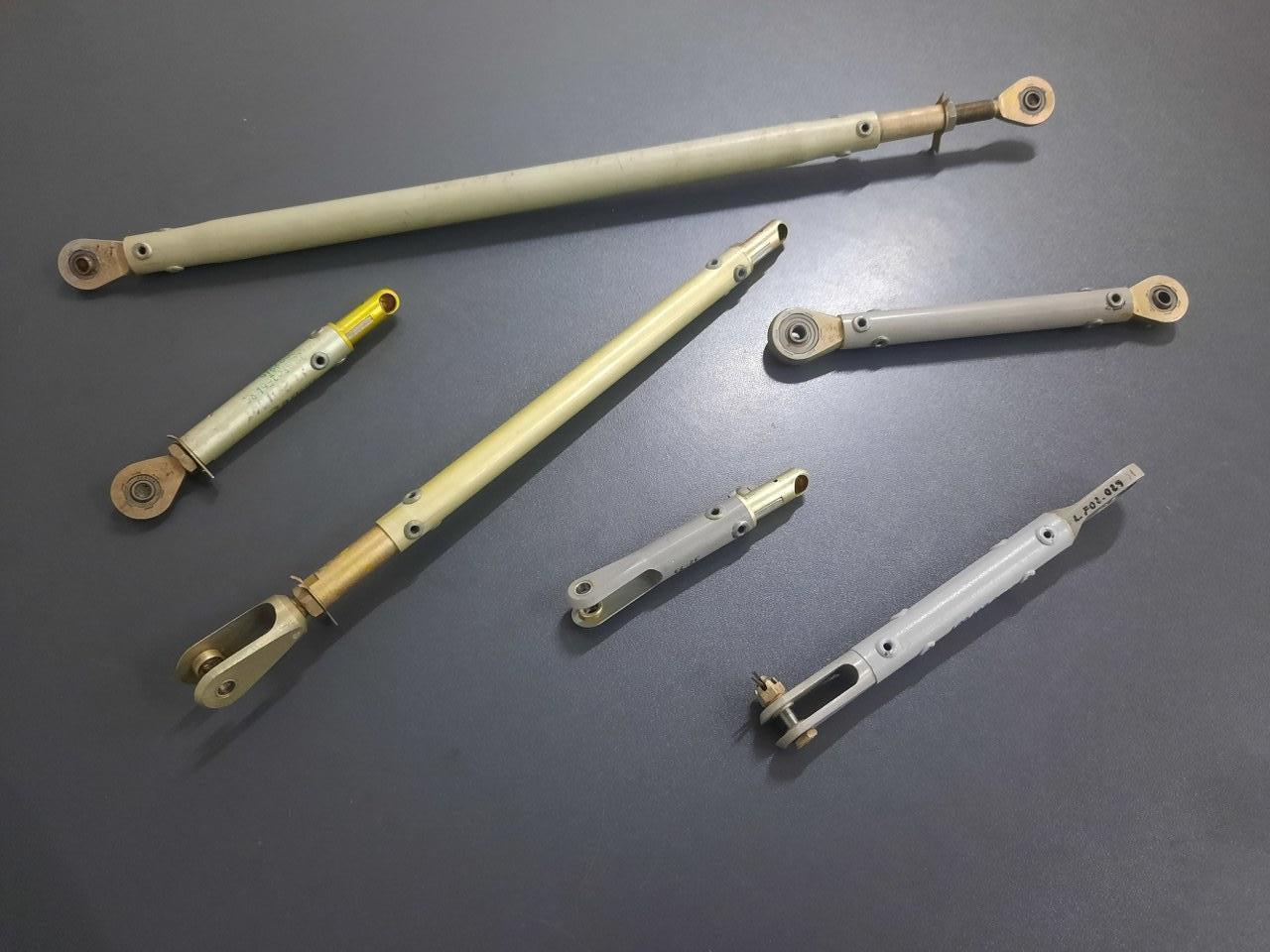

From a new old stock I am selling several models of control tubes complete according to the overall photo. For more aviation parts see my all adverts page.

Summary description for each one:

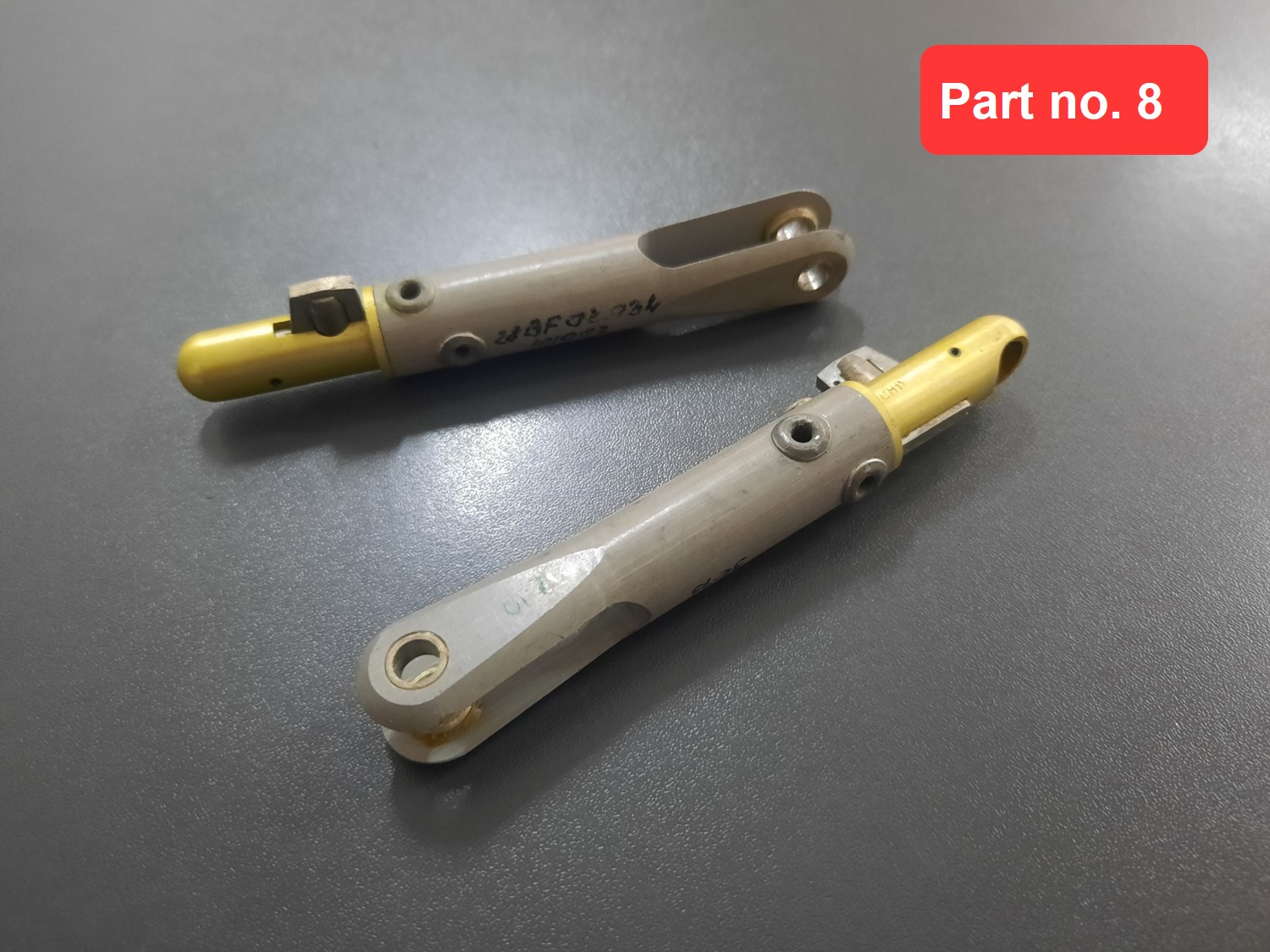

- Part no. 8:
• Total length: 117.7mm
• Tube diameter: 16mm
• One end:
- 9mm ball hole diameter
• Second end:
- Fork opening: 5.8/10.2mm
- Hole diameter: 6mm

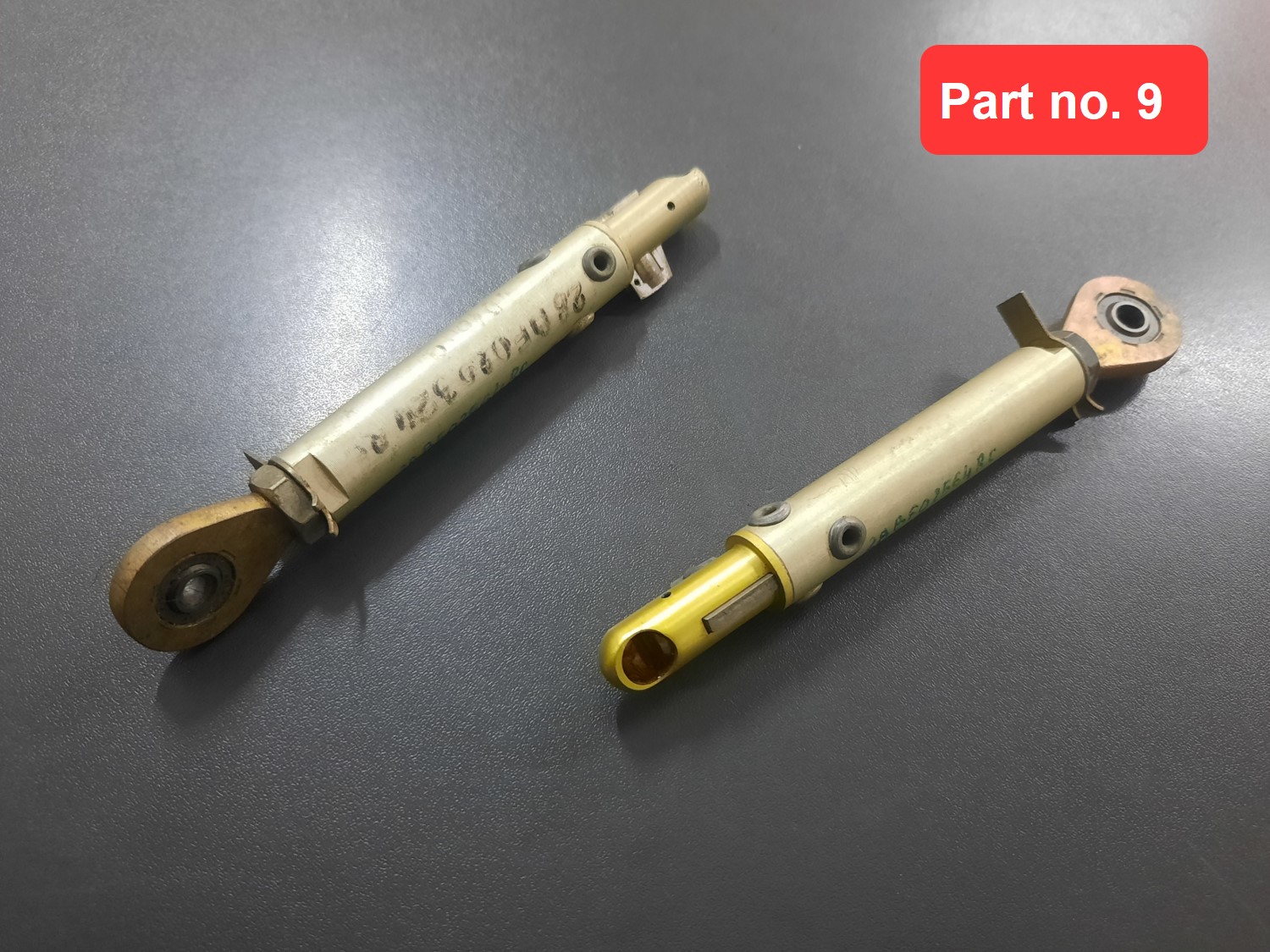

- Part no. 9:
• Total length min. : 150.5mm
• Tube diameter: 16mm
• One end:
- 9mm ball hole diameter
• Second end (FJG GE6D2 bearing):
- Ball width: 6mm
- Body width: 5mm
- Hole diameter: 6mm

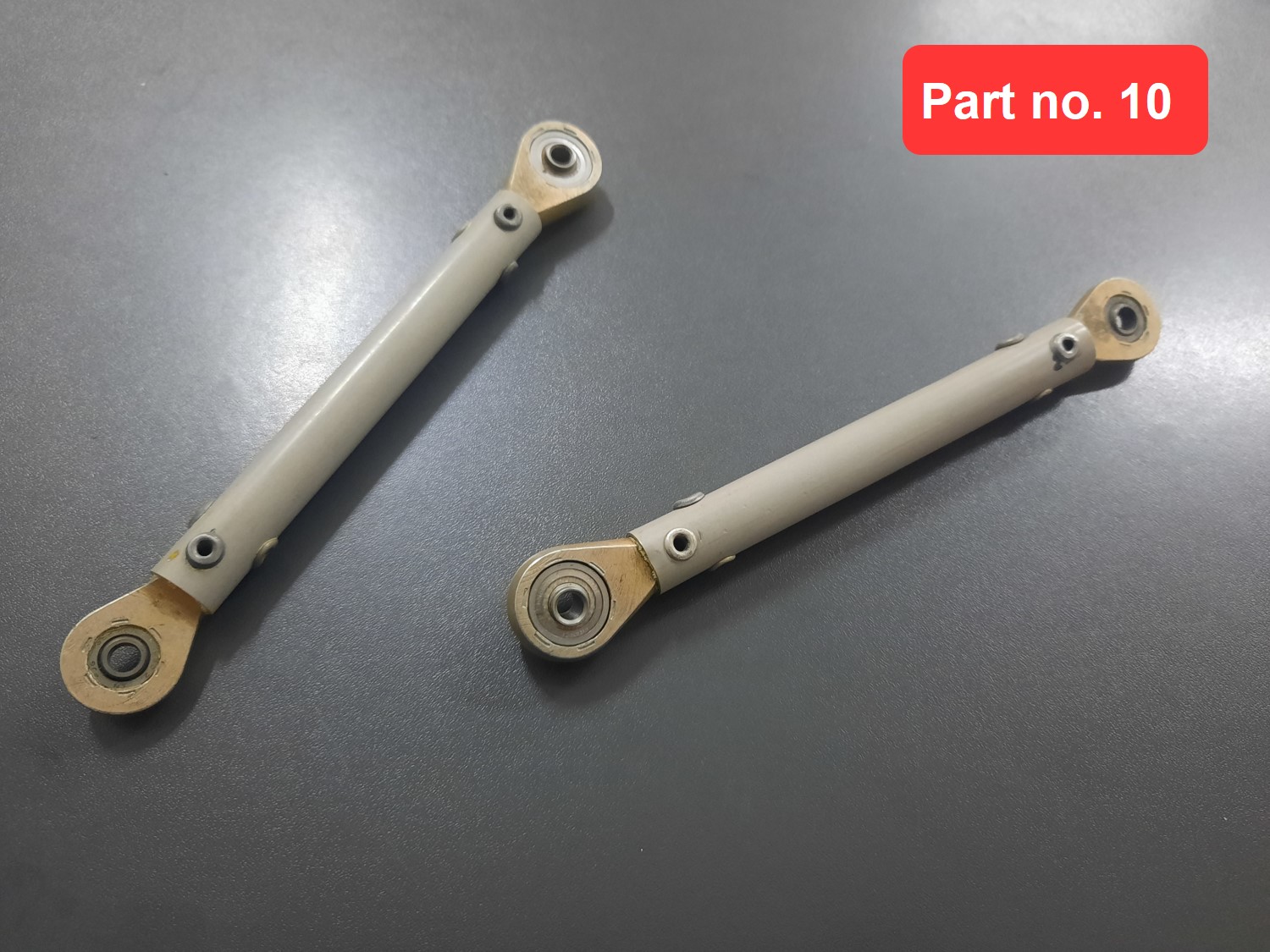

- Part no. 10:
• Total length: 198mm
• Tube diameter: 16mm
• One end (ADR KN6E-6E4 bearing):
- Hole diameter: 6mm
- Ball width: 14mm
- Body width: 11mm
• Second end (FJG GE6D2 bearing):
- Hole diameter: 6mm
- Ball width: 6mm
- Body width: 5mm

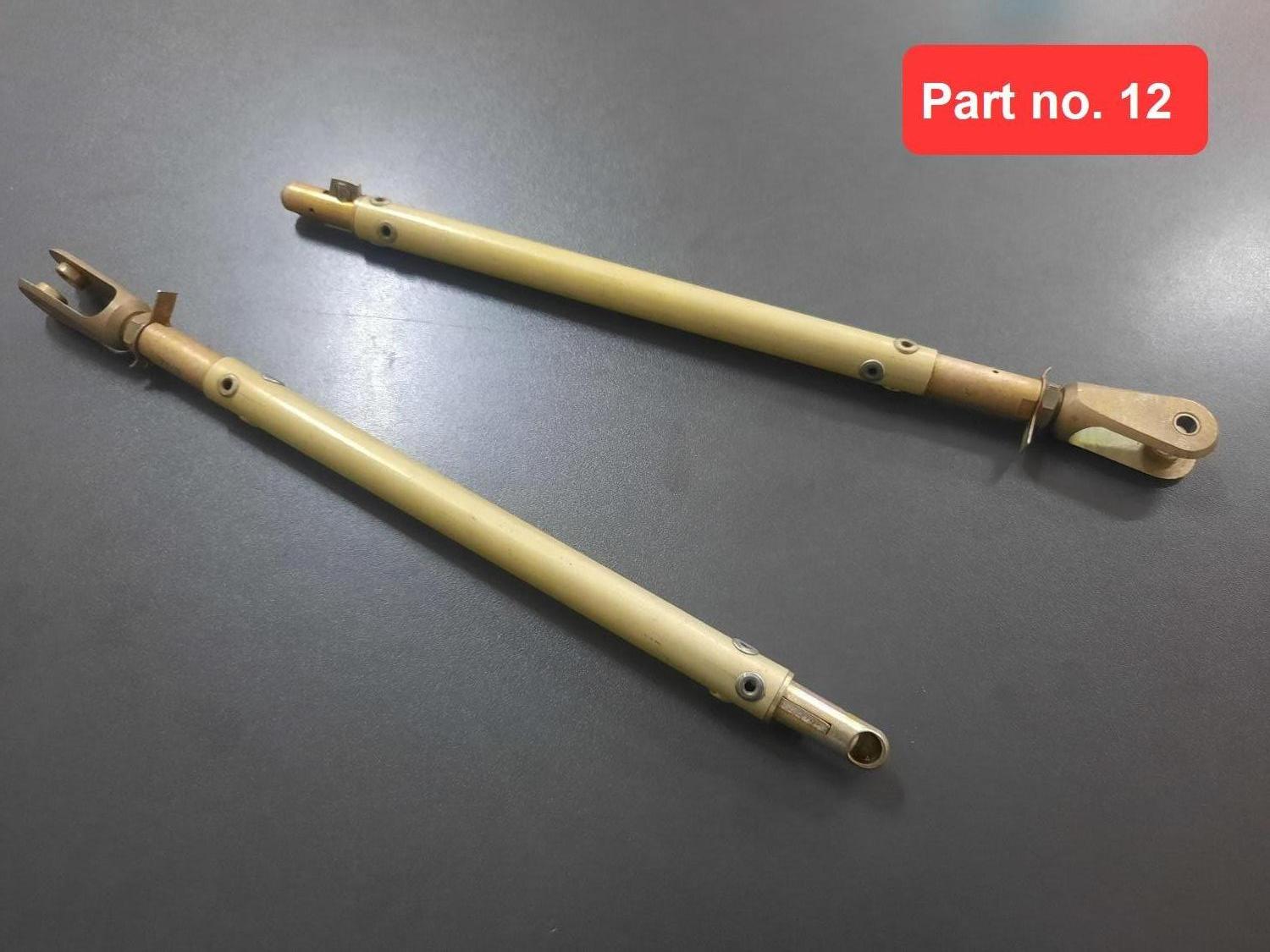

- Part no. 12:
• Total length min. : 395mm
• Tube diameter: 16mm
• One end:
- 9mm ball hole diameter
• Second end (fork):
- Hole diameter: 6mm
- Fork opening: 6.2/14.2mm

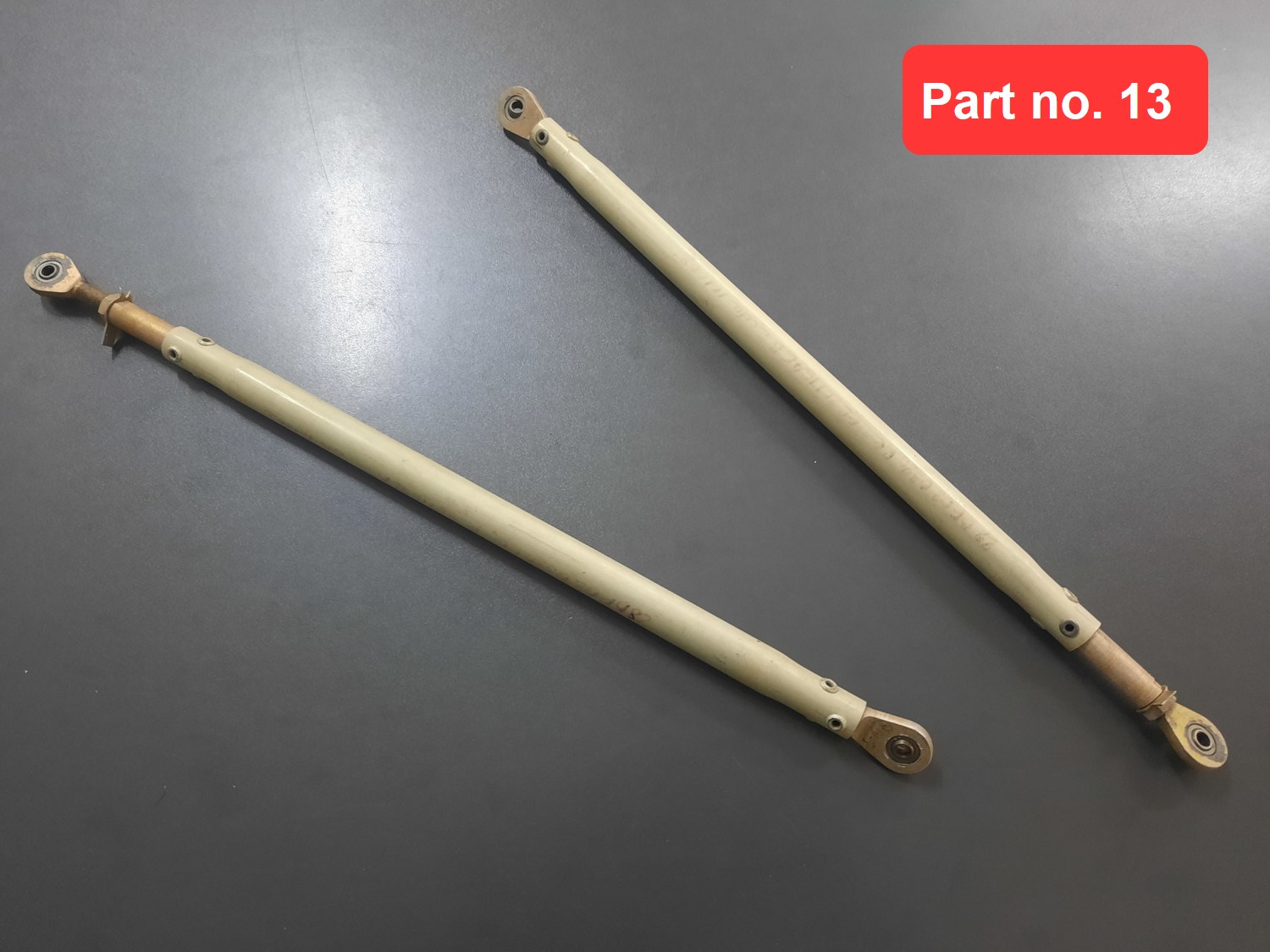

- Part no. 13:
• Total length min. : 470mm
• Tube diameter: 20mm
• Both ends (FJG GE6D-2 bearing):
- Hole diameter: 6mm
- Ball width: 6mm
- Body width: 5mm

The stock available for each model is:
- Part no. 8 – 12x
- Part no. 9 – 11x
- Part no. 10 – 10x
- Part no. 11 – 0x
- Part no. 12 – 37x
- Part no. 13 – 3x

The price depends on the quantity and model. For any other questions or measurements, do not hesitate to ask.
